A Guide to IP-Based CCTV Surveillance Systems

Exploring IP Cameras

Table of Contents

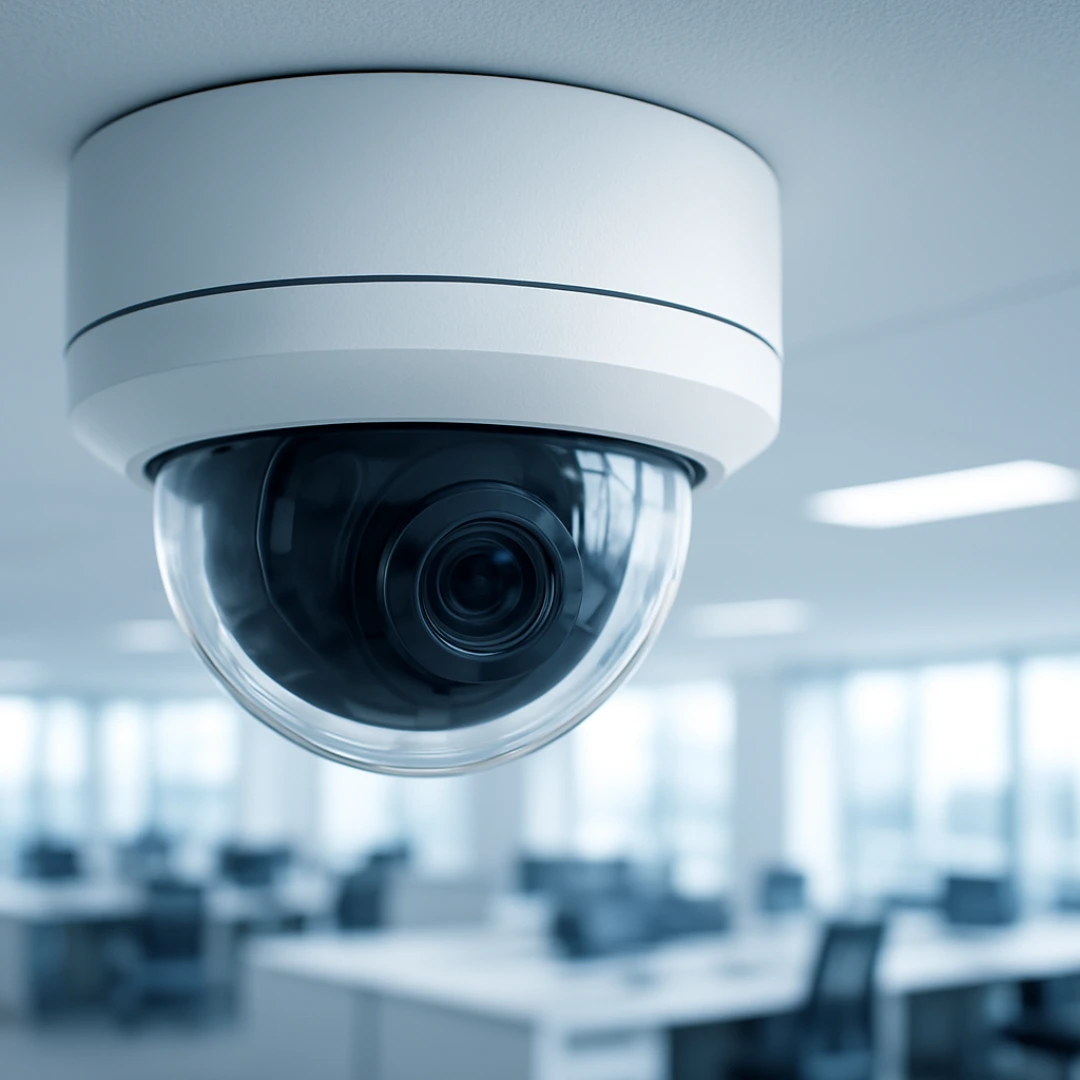

What is an IP Camera?

IP camera(s), also referred to as network cameras or internet cameras, are modern video surveillance devices that capture and transmit video footage over an Ethernet network. Unlike conventional analog cameras, which necessitate a distinct coaxial cable connection to a recording device, network cameras connect directly to an Ethernet network or the worldwide web. This direct link permits the smooth transmission of video data and eliminates the necessity for extra hardware like DVRs.

Understanding IP Cameras

IP cameras consist of several key components that work together to capture, encode, and transmit video footage. Here is a breakdown of how IP cameras work:

  1. Image Capture: IP cameras use high-resolution image sensors, typically CMOS or CCD, to capture video footage. These sensors convert the optical image into an electrical signal.

  2. Encoding: The captured analog video signals are converted into a digital format using compression algorithms like H.264 or H.265. This process reduces the file size of the video stream without significant loss of quality.

  3. Network Connectivity: IP cameras have built-in network interfaces, such as Ethernet ports or Wi-Fi adapters, that allow them to connect to an IP network or the internet. This connectivity enables the transmission of video data to other devices or network video recorders (NVRs).

  4. Network Protocols: IP cameras use network protocols like TCP/IP (Transmission Control Protocol/Internet Protocol) and HTTP (Hypertext Transfer Protocol) to transmit video data over the network. These protocols ensure reliable and secure data transmission between the IP camera and other network devices.

  5. Power and Connectivity Options: IP cameras can be powered through different methods. Power over Ethernet (PoE) is a common option where the camera receives power and network connectivity through a single Ethernet cable. Alternatively, IP cameras can be powered by an external power supply.

  6. Video Management Software: To access and manage IP cameras, video management software (VMS) is used. VMS allows users to view live video streams, record footage, set up motion detection, configure camera settings, and perform other management tasks. The software provides a user-friendly interface for monitoring and controlling multiple IP cameras.

  7. Remote Access: One of the significant advantages of IP cameras is the ability to access video footage remotely. Users can view live or recorded video streams from anywhere with an internet connection using a computer, smartphone, or tablet. Remote access offers flexibility and convenience for monitoring and managing surveillance systems.

    READ ALSO: CCTV Surveillance Systems Integration With Access Control

Distinction between IP cameras and traditional analog cameras

Below are the major differences  between IP cameras and traditional analog cameras:

  1. Technology: Using digital technology, IP cameras convert audio and video into digital data that is then sent via IP protocols over computer networks or the internet. On the other hand, analog cameras utilize analog technology to transmit video signals through special coaxial cables.
  2. Video Quality: When compared to analog cameras, IP cameras typically offer superior resolution and image quality. They can record and transfer footage in high definition (HD) or even ultra-high definition (UHD), which results in footage that is clearer and more detailed.
  3. Flexibility in Installation: There are more installation options available with IP cameras. Standard network cables can be used to connect them to the network, making deployment simpler and more scalable. Conversely, analog cameras may have restrictions on signal quality and distance and therefore need special video cables.
  4. Remote Access: With the help of remote access features, IP cameras allow users to monitor recorded and live video streams from anywhere using an internet connection. Analog cameras typically do not have built-in remote access functionality and require additional equipment for remote monitoring.
  5. Advanced Features: Compared to analog cameras, IP cameras often come with advanced surveillance features. These can include advanced analytics, facial recognition, license plate identification, motion detection, and integration with additional safety systems.
  6. Cost: IP cameras may initially cost more than analog cameras, but over time, their total cost of ownership may be less. IP cameras may use the network infrastructure that already exists, saving money on installation and maintenance by doing away with the need for separate video connections.
  7. Scalability: Because IP cameras are so scalable, adding more cameras to the network and expanding it are simple processes. Scalability is challenging with analog systems since introducing more cameras may require additional cables and devices.
  8. Integration: IP cameras provide simple integration with various security systems, including alarms, access control systems, and video management software. A more complete and centralized security solution is made possible by this combination. Integration capabilities of analog cameras are generally limited.

How do IP Cameras Work?

IP cameras consist of several key components that work together to capture, encode, and transmit video footage. Here is a breakdown of how IP cameras work:

  1. IP Cameras: An IP-based CCTV system’s main components are IP cameras. After capturing video, IP cameras transform it into digital data that can be sent over a network.  They come in various types, such as dome cameras, bullet cameras, and PTZ (pan-tilt-zoom) cameras, each suited for specific surveillance needs.
  2. Network Infrastructure: A robust network infrastructure is important for an IP-based CCTV system. These include network switches, routers, and cabling that enhance the transmission of data between IP cameras, recording devices, and viewing stations. It should be possible for the network infrastructure to support several cameras’ combined bandwidth needs.
  3. Network Video Recorder (NVR): The NVR is the central recording device in an IP-based CCTV system. It receives and stores the digital video data from IP cameras. NVRs often have built-in storage capacity or support external storage devices, such as hard drives or network-attached storage (NAS), for storing recorded video footage.
  4. Power over Ethernet (PoE) Switches or Injectors: IP cameras typically require power to operate. PoE switches or injectors provide both data connectivity and power supply to the cameras via a single Ethernet cable. This makes the installation simple and eliminates the need for separate power cables.
  5. Video Management Software (VMS): VMS is a software program that makes it possible to manage, monitor over, and operate IP cameras and recorded video. It enables users to do complex tasks like video analytics and event management in addition to accessing live video feeds, adjusting camera settings, and scheduling recordings.
  6. Display Monitors: Live video feeds and recorded video from the IP-based CCTV system can be displayed on monitors or display screens. These could be computer screens or dedicated monitors that are linked to the monitoring device.

Advantages of IP Cameras

  1. i). Higher resolution and image quality:
    The capacity of IP cameras to record high-definition video footage is one of their main CCTV suirveillance benefits. Compared to traditional analog cameras, they provide better image quality, enabling clear and efficient monitoring.

    ii). Remote accessibility and monitoring:
    Remote access to both recorded and live video feeds is made possible by IP cameras. With an internet connection, users can effortlessly monitor their workplace monitoring solutions from anywhere. Businesses with multiple locations or individuals who need access control integration for businesses to monitor their properties while on vacation might find this remote accessibility useful.

    iii). Scalability and flexibility in system expansion:
    IP-based CCTV systems offer scalability and flexibility for system expansion. The network can simply accommodate more IP cameras without requiring complicated cabling. Businesses can expand an existing setup or add new cameras to suit changing security needs by adjusting their networked surveillance systems for businesses to accommodate this scalability.

    iv). Integration with other smart technologies:
    Alarms, video analytics, and access control systems are just a few of the smart technologies that IP cameras easily integrate with. This integration offers a more automatic and comprehensive approach, which improves the security ecosystem as a whole. IP cameras can be used in conjunction with facial recognition software, for instance, to regulate access, or they may be configured to produce an alert in response to particular events or abnormalities seen in the video stream. The efficiency and overall efficacy of video surveillance systems for businesses are enhanced through the integration of IP cameras with smart technologies.

Considerations Before Implementing IP-based CCTV Systems

i). Network bandwidth and storage requirements:
It is necessary to determine the network bandwidth and storage needs before implementing an IP-based CCTV system. A large amount of data is produced by IP cameras, particularly if they are capable of high resolution. It is crucial to confirm that there is enough storage space available to hold the captured video footage and that the network architecture can manage the additional data traffic.


ii). Power over Ethernet (PoE) considerations:
It’s important to take the power source into account while installing IP cameras. With a single Ethernet cable, PoE switches or injectors may supply the cameras with both power and data communication. All of the system’s cameras must, however, be sufficiently powered by the PoE infrastructure. If PoE is not practical, other power options may need to be taken into account.


iii). Cybersecurity measures for IP cameras:
Due to their network connectivity, IP cameras may be subject to cybersecurity risks. To safeguard the IP-based CCTV system, strong security measures must be put in place. This entails segmenting the network, encrypting data transmission, implementing firewall protection, creating strong passwords, and updating camera firmware regularly. It is also important to perform routine security audits and monitoring to find and fix any possible vulnerabilities.

v). Compatibility with existing infrastructure:
It is important to think about compatibility with the current infrastructure before installing an IP-based CCTV system. This involves determining if the additional bandwidth needs of the IP cameras can be supported by the network switches, routers, and other network components. It is important to evaluate compatibility with current security systems, such as alarms and access control, to guarantee smooth operation and efficient coordination across various systems.

Installation and Setup of IP Cameras

  • Placement and positioning for optimal surveillance coverage:
    Proper placement and positioning of IP cameras are essential to achieve optimal surveillance coverage. Consider factors such as the area to be monitored, the camera’s field of view, and potential blind spots. Cameras should be strategically positioned to capture the desired areas effectively, ensuring that critical points, entrances, and high-risk areas are covered. It’s important to consider factors like lighting conditions, obstructions, and camera mounting options for optimal performance.
  • Configuring network settings and addressing potential issues:
    Network setups must be properly configured to set up IP cameras. This entails setting up network switches or routers, giving the cameras IP addresses, and guaranteeing proper network communication. It is important to establish network settings such as subnet masks, gateways, and DNS servers correctly. To guarantee that the IP cameras function properly, it’s also essential to address any issues like IP conflicts, network congestion, and limitations on bandwidth.
  • Integration with other security components: IP cameras can be used with additional security components to provide a comprehensive surveillance setup. The process of integration could entail setting up the video management system (VMS), connecting the cameras to a network video recorder (NVR), or integrating with analytics, alarm, or access control software. To guarantee smooth operation and efficient synchronization between various security components, these integrations must be configured and tested properly.


It’s crucial to adhere to the installation and configuration guidelines provided by the manufacturer as well as recommended procedures. This includes setting up the cameras for the desired features, such as motion detection, scheduling, and video quality, as well as securely installing the cameras and connections. It is important to regularly test and adjust the IP cameras to make sure they are meeting the surveillance requirements and operating at peak efficiency.

To guarantee precise CCTV installation, appropriate configuration, and smooth integration of IP cameras into the entire security system, professional assistance from certified technicians or integrators may be helpful.

Best Practices for Maintenance and Troubleshooting


Regular software updates and firmware maintenance

To ensure the optimal performance and security of an IP-based CCTV system, regular software updates and CCTV firmware maintenance are essential. Follow these best practices:

  1. Stay Up-to-Date: Keep track of software updates and firmware releases provided by the camera manufacturer. Regularly check for updates and patches to address security vulnerabilities and improve system functionality.
  2. Scheduled Maintenance: Establish a schedule for performing software updates and firmware upgrades. This can help prevent issues caused by outdated software and ensure that the system benefits from the latest features and bug fixes.
  3. Backup Configuration: Before performing any updates or changes, create a backup of the camera configurations and settings. This allows for easy restoration in case of any issues during the update process.

Monitoring network health and addressing connectivity issues

Maintaining a healthy network infrastructure is crucial for the smooth operation of an IP-based CCTV system. Follow these best practices:

  1. Network Monitoring Tools: Implement network monitoring tools to continuously monitor the health and performance of the network. These tools can help identify connectivity issues, bandwidth bottlenecks, or network congestion that may impact the camera’s performance.
  2. Bandwidth Management: Monitor bandwidth usage and ensure that the IP cameras are allocated sufficient bandwidth to transmit video streams effectively. Prioritize critical camera feeds and consider implementing Quality of Service (QoS) mechanisms to ensure smooth video transmission.
  3. Network Security: Regularly assess and update network security measures to protect the IP cameras from potential cybersecurity threats. Implement firewalls, strong access controls, and encryption protocols to secure the network infrastructure.

Troubleshooting common problems in IP-based CCTV systems

Inevitably, issues may arise in IP-based CCTV systems. Here are some common problems and troubleshooting best practices:

  1. Camera Connectivity: If a camera loses connection, check the physical connections, including power and network cables. Ensure that the camera’s IP address is correctly configured and that it is receiving power. Consider restarting the camera or checking network settings if the issue persists.
  2. Image Quality Issues: If the video quality is poor or there are artifacts, check for network congestion or insufficient bandwidth. Verify that the camera resolution settings are properly configured. Adjust camera settings or network configurations as needed to optimize image quality.
  3. Recording and Storage Problems: If there are issues with recording or storage, ensure that the NVR or storage device is functioning correctly. Check available storage capacity and consider adjusting recording schedules or implementing motion-based recording to optimize storage usage.
  4. System Integration: If there are issues with integrating the IP-based CCTV system with other security components, verify the compatibility and configuration of the systems involved. Ensure that software interfaces and protocols are set up correctly and consult with the respective vendors or integrators for assistance.

Future Trends in IP-based CCTV Surveillance

The future of IP-based CCTV surveillance is influenced by advancements in artificial intelligence and machine learning. AI can enhance IP cameras’ capabilities by enabling real-time video analytics, behavioral analysis, and predictive analytics. AI can detect anomalies, intrusions, and unusual behavior, while ML can predict future security concerns and patterns, allowing security staff to take preventative action.

IP-based CCTV systems will undergo significant advancements in smart surveillance and video analytics. These include object tracking and recognition, crowd monitoring, and real-time incident response. IP cameras can monitor and identify items of interest, detect crowd density, and respond to events in real-time, making them useful in public spaces, events, and transportation hubs.

IP camera technology is expected to revolutionize CCTV surveillance with improved imaging, higher resolution, edge computing, enhanced connectivity, and cloud-based solutions. These innovations will enhance surveillance recordings, reduce dependency on centralized servers, improve situational awareness, and simplify maintenance. Additionally, IP cameras will leverage wireless connectivity innovations like 5G for enhanced security ecosystems.
